How Does Carbon Fiber Composite Material Deliver Strength and Lightness

You experience the benefits of carbon fiber every time you encounter a product that demands both high strength and low weight. Engineers design carbon fiber composite materials by embedding strong carbon fiber strands within a lightweight resin matrix. This structure creates a strong material that delivers a superior strength-to-weight ratio compared to metals. The unique structure of carbon fiber composites makes them ideal for industries where weight reduction and strength are critical.

• In 2023, aerospace accounted for 40% of carbon fiber composite market revenue, while automotive held 30% and continues to grow rapidly.

• Carbon fiber’s modulus of elasticity reaches 33 million psi, and its density is about half that of aluminum, making it a top choice for lightweight applications.

• The structure often includes honeycomb or foam cores to boost strength and stiffness without adding unnecessary weight.

You see the impact of Carbon fiber composite material science in everything from fuel-efficient vehicles to advanced wind turbines.

Key Takeaways

• Carbon fiber composites combine strong carbon fibers with a lightweight resin matrix to create materials that are both very strong and light.

• The orientation of carbon fibers greatly affects strength and flexibility, allowing engineers to tailor materials for specific uses.

• Manufacturing methods and resin types influence the quality, strength, and cost of carbon fiber composites.

• Compared to metals like steel and aluminum, carbon fiber composites offer much higher strength-to-weight ratios and resist corrosion better.

• Carbon fiber composites are widely used in aerospace, automotive, sports, and civil engineering to improve performance, reduce weight, and increase durability.

What Is Carbon Fiber Composite

Carbon Fiber Structure

You encounter carbon fiber in many high-performance products because of its unique structure and impressive mechanical properties. Carbon fiber consists of thin, strong filaments made from carbon atoms bonded in long chains. Manufacturers produce these fibers from precursors like PAN or pitch, using processes that align the carbon atoms into ordered patterns. This alignment gives carbon fiber its exceptional strength and stiffness. The structure of each filament features graphene layers arranged in hexagonal patterns, which boost both the strength and the weight advantage over metals.

The way these fibers are arranged and processed directly affects the performance of carbon fiber reinforced composites. For example, high crystalline alignment increases Young’s modulus and improves thermal and electrical conductivity. PAN-based fibers, with their smaller crystallites, resist crack propagation and deliver higher tensile strength. You benefit from these properties in applications where both strength and low weight are critical.

The atomic structure of carbon fiber material ensures that you get a lightweight product without sacrificing strength or durability.

Here’s a quick overview of the main components and characteristics:

Resin Matrix Role

You rely on the resin matrix to hold the carbon fibers together and maintain the overall structure of the composite. The resin, often epoxy or vinyl ester, surrounds the fibers and locks them in place. This matrix supports the fibers, helps distribute loads, and protects against environmental damage. The resin matrix also provides chemical resistance and temperature tolerance, making carbon fiber composites suitable for demanding environments.

The resin matrix plays a key role in the strength and durability of carbon fiber reinforced composites. Toughening the resin increases compressive and bending strength, as well as fracture toughness. When you add toughening particles, you further improve impact resistance and post-impact strength. While the carbon fibers control most of the tensile strength and stiffness, the resin matrix ensures the composite can handle compressive forces and resist cracking.

You gain a material that combines the best of both worlds: the strength and stiffness of carbon fiber with the resilience and protection of the resin matrix. This synergy creates a lightweight structure that outperforms traditional materials in both strength and weight.

Carbon Fiber Composite Material Science

Fiber Orientation and Properties

You unlock the true potential of carbon fiber composite material science when you understand how fiber orientation shapes mechanical performance. The direction in which you align carbon fiber strands directly impacts the strength, stiffness, and weight of the final product. When you align fibers parallel to the direction of applied force (0° orientation), you achieve maximum tensile strength and the highest stiffness-to-weight ratio. This configuration allows the fibers to bear most of the load, resulting in a high-performing composite material that excels in demanding applications.

If you orient fibers at 45°, you introduce more ductility and flexibility, but you sacrifice some strength and stiffness. This orientation works well for parts that need to absorb energy or flex under load. When you arrange fibers at 90°, perpendicular to the load, you see a significant drop in both tensile strength and stiffness-to-weight ratio. Mixed or quasi-isotropic layups, which combine multiple orientations, offer balanced properties for components facing complex, multi-directional stresses.

Tip: You can tailor the mechanical behavior of carbon fiber composites by adjusting fiber orientation, optimizing both strength and weight for your specific application.

Here’s a table that summarizes how fiber orientation affects mechanical properties:

You can see from this data that the highest tensile strength and stiffness-to-weight ratio occur when fibers align with the load. Mixed orientations provide versatility, but you never surpass the performance of unidirectional alignment for pure tensile applications.

The science behind carbon fiber composite material science also explains why these materials outperform metals. Carbon fiber filaments, with diameters between 5 and 10 micrometers, consist of carbon atoms bonded in long chains. This structure delivers high tensile strength, high modulus of elasticity, and low density. As a result, you achieve a superior stiffness-to-weight ratio and strength-to-weight ratio compared to traditional metals.

Manufacturing Process

You play a crucial role in determining the final properties of carbon fiber composites through your choice of manufacturing process. The carbon fiber manufacturing process begins with the formation of carbon fiber filaments. You start by carbonizing precursor materials such as polyacrylonitrile or pitch resin at temperatures up to 2500 °C under tension. This step increases carbon content and enhances microstructural integrity, resulting in fibers with exceptional strength and fatigue resistance.

Once you have the fibers, you weave or align them into fabrics or tapes. You then combine these with a resin matrix, such as epoxy, polyester, or advanced nanocomposite resins. The way you impregnate the fibers with resin and cure the composite determines the final weight, strength, and stiffness-to-weight ratio of the part.

Here’s a table comparing common manufacturing processes and their impact on carbon fiber composite material science:

You see that automated methods like AFP deliver consistent quality and enable complex designs, which improves the reliability of high-performance materials. Manual methods, such as hand layup, offer flexibility for intricate shapes but introduce variability in quality and weight.

The choice of resin also plays a vital role in carbon fiber composite material science. Epoxy resin stands out for its high strength, stiffness, and fatigue resistance, making it the top choice for high-performance materials. Polyester resin offers lower cost and easier handling but does not match the mechanical performance of epoxy. Phenolic resins provide heat and chemical resistance for specialized uses. Nanocomposite resins, enhanced with graphene or carbon nanotubes, further boost strength, durability, and thermal stability.

• Epoxy resins deliver higher elongation at break, superior resistance to micro-cracking, and excellent adhesive properties.

• Polyester resins suit less critical applications due to lower mechanical performance.

• Phenolic resins excel in environments requiring high heat resistance.

• Nanocomposite resins improve compressive strength and interlaminar shear strength, especially when you add fillers like carbon nanofibers.

Note: The resin matrix supports fibers and transfers loads. By increasing the modulus of the resin, you prevent premature buckling of fibers and improve compressive properties. Modifying the resin with nano-silicon dioxide or carbon nanotubes can further enhance durability and stiffness-to-weight ratio.

You can see the scientific principles behind carbon fiber composite material science in the following comparison of specific stiffness and specific strength:

You notice that carbon fiber composites offer about twice the specific stiffness and four to five times the specific strength-to-weight ratio of aluminum and steel. This advantage explains why you choose carbon fiber composite material science for applications where reducing weight and maximizing strength are critical.

Carbon Fiber Composites vs. Metals

Steel and Aluminum Comparison

When you compare carbon fiber composites to traditional metals like steel and aluminum, you notice clear differences in both weight and strength. Carbon fiber composites deliver much higher strength-to-weight ratio, making them ideal for applications where reducing weight is critical. You can see this in the following table:

You also find that carbon fiber composites outperform steel and aluminum in both tensile strength and stiffness, while maintaining much lower weight. For example, T300/epoxy carbon fiber composite has a density of 1760 kg/m³ and a tensile strength of 1860 MPa, compared to aluminum alloy’s 2700 kg/m³ and 255 MPa. This means you achieve higher performance with less material.

Advantages and Limitations

You gain several advantages when you choose carbon fiber composites over metals:

• You benefit from a very high strength-to-weight ratio, which allows you to design lighter structures without sacrificing strength.

• Carbon fiber composites offer superior tensile strength, often reaching values far above those of steel or aluminum.

• You enjoy excellent corrosion resistance, so your parts last longer in harsh environments.

• The material provides design flexibility, letting you create complex shapes that metals cannot easily match.

• Durability improves, as carbon fiber composites resist fatigue, UV damage, and temperature changes.

• You reduce maintenance needs, since composites do not rust or degrade as quickly as metals.

• Lighter weight simplifies handling and installation, saving time and cost.

However, you must also consider some limitations:

Note: Carbon fiber composites cost much more than steel or aluminum. Manufacturing requires specialized equipment and skilled labor, which increases expenses.

Repairing carbon fiber composites can be difficult. The structure makes it hard to separate fibers from resin without causing damage. Recycling also presents challenges. Current methods are expensive and degrade fiber quality, so recycled fibers often serve only lower-value uses. Metals, in contrast, are easier to repair and recycle.

• Recycling carbon fiber composites uses a lot of energy and has limited infrastructure.

• Recycled fibers lose quality, unlike metals, which retain their properties after recycling.

You must weigh these factors when selecting materials for your project. Carbon fiber composites deliver unmatched strength and weight advantages, but you need to plan for higher costs and more complex repair or recycling processes.

Applications of Carbon Fiber Composites

Aerospace and Automotive

You see the most significant applications of carbon fiber composites in the aerospace industry, where the strength-to-weight ratio is critical. Aircraft manufacturers use carbon fiber in bodies and structural components because it is about five times stronger than steel but much lighter. This low weight to strength ratio allows you to reduce aircraft weight by up to 20%, which directly improves fuel efficiency and lowers operational costs. Carbon fiber’s resistance to corrosion and fatigue extends the lifespan of aircraft and reduces maintenance needs. You benefit from the design flexibility of carbon fiber engineering, which enables complex aerodynamic shapes and the integration of sensors and electronics into lightweight components.

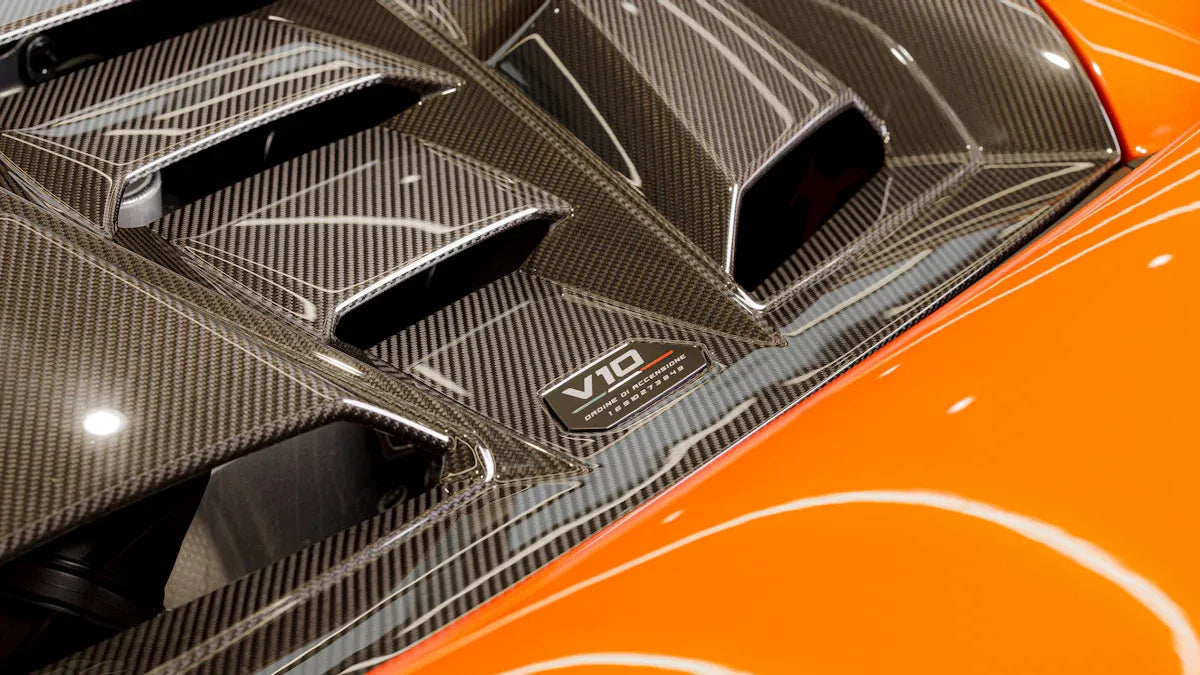

In the automotive sector, you rely on carbon fiber composites to enhance both fuel efficiency and safety. By reducing vehicle weight, you require less energy for movement, which cuts emissions and improves fuel economy. The superior strength-to-weight ratio of carbon fiber increases crash resistance and structural integrity without adding bulk. You find carbon fiber in body panels, chassis, suspension parts, and battery enclosures, especially in electric vehicles. Its corrosion resistance further boosts durability and reduces long-term maintenance costs.

Note: Manufacturing innovations are making carbon fiber more accessible, but high production costs and complex repair processes remain challenges for widespread adoption.

Sports and Engineering

You experience the benefits of carbon fiber engineering in high-performance sports equipment. Manufacturers use carbon fiber composites to create lighter, stronger gear that enhances athletic performance. For example, you find carbon fiber in golf clubs, hockey sticks, rackets, skis, snowboards, running shoes, water sports equipment, and bicycles. These applications take advantage of the material’s high strength-to-weight ratio, rapid energy restitution, and tailored damping, which improve control, comfort, and safety.

In civil engineering, you use carbon fiber composites to reinforce and repair infrastructure. Carbon fiber reinforced concrete, rods, and grids replace heavier materials, reducing weight while increasing strength and corrosion resistance. You apply carbon fiber laminates and textiles to beams, slabs, and columns, improving structural performance and extending service life. The lightweight nature of these materials allows for faster installation and minimal disruption, making them ideal for strengthening bridges, piers, and buildings.

Tip: While carbon fiber composites offer unmatched strength and weight advantages, you must consider higher costs and specialized repair techniques when planning your applications.

You benefit from carbon fiber composites because their unique structure—strong fibers in a lightweight matrix—delivers unmatched strength and lightness. These materials enable dramatic weight reductions, boost fuel efficiency, and support advanced technologies in aerospace, automotive, and sports. Industry experts expect rapid growth as automation, recycling, and nanotechnology drive down costs and unlock new applications.

As you look ahead, carbon fiber composites will shape the future of sustainable design and high-performance engineering.
