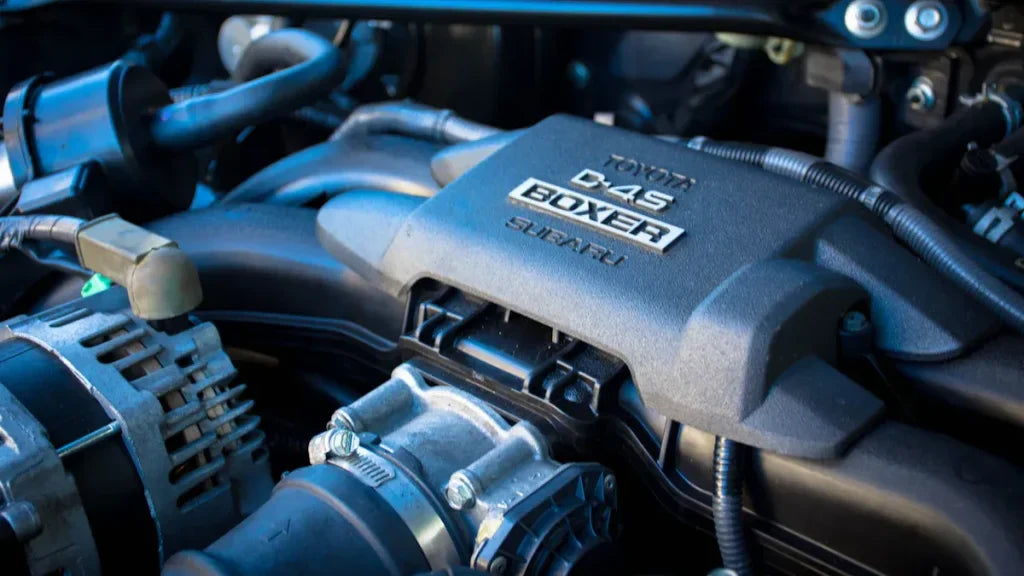

Boxer Engine vs Inline Engine Key Differences Explained

When comparing the boxer engine vs inline engine, their distinct cylinder arrangements play a crucial role in shaping vehicle dynamics. The boxer engine, with its horizontally opposed cylinders, achieves a lower center of gravity. This design enhances cornering stability and braking performance, making it a favorite in sports cars like the Subaru WRX and Porsche 911. In contrast, the inline engine, featuring cylinders aligned in a straight line, offers simplicity and compactness, as seen in models like the BMW 3 Series. While boxer engines deliver smoother operation due to fewer secondary vibrations, inline engines often require additional measures to manage vibrations. These differences influence torque delivery, fuel efficiency, and maintenance needs, helping you choose the right engine for your driving style.

Key Takeaways

• Boxer engines sit lower, improving stability and cornering. They are great for sports cars.

• Inline engines are simpler and smaller. They are easier to fix and cheaper to make, perfect for daily cars.

• Boxer engines shake less, so they run smoother. Inline engines might need extra parts to balance.

• Pick an engine based on your needs: boxer engines for better performance, or inline engines for saving money and being practical.

• Electric engines are becoming popular. People now care more about the environment and saving on maintenance.

Boxer Engine vs Inline Engine: Design and Layout

Boxer Engine Design

The boxer engine stands out for its horizontally opposed cylinder layout. This design positions the cylinders in two flat banks on either side of the crankshaft, creating a low-profile engine. The pistons move laterally, toward or away from each other, which helps cancel out vibrations. This unique movement contributes to smoother operation and better balance. The short and stiff crankshaft enhances durability and reduces torsional vibrations, making the boxer engine ideal for high-performance vehicles like the Subaru WRX and Porsche 911. Additionally, the flat design lowers the engine’s center of gravity, improving stability and handling, especially during cornering.

Inline Engine Design

The inline engine features a simpler and more compact design. Its cylinders align in a single vertical or horizontal row, making it easier to manufacture and maintain. Unlike the boxer engine, the pistons in an inline engine move in the same direction, which can lead to more vibrations unless counterbalanced. Inline engines are versatile and come in various configurations, such as inline-3, inline-4, and inline-6, each offering different levels of performance and smoothness. For example, the inline-4 engine, commonly found in vehicles like the BMW 3 Series, provides a balance between power and efficiency, making it a popular choice for everyday driving.

Structural Differences Between Boxer and Inline Engines

The structural differences between boxer and inline engines significantly impact their performance and application. Here’s a comparison:

The boxer engine’s low center of gravity enhances vehicle dynamics, while the inline engine’s compactness allows for better space efficiency. However, the boxer engine’s complexity can make maintenance more challenging compared to the straightforward design of inline engines. These differences make each engine layout suitable for specific driving needs and vehicle designs.

Boxer Engine vs Inline Engine: Performance Characteristics

Engine Balance and Smoothness

The boxer engine excels in achieving superior engine balance due to its unique 180º symmetrical layout. The opposing pistons move in opposite directions, effectively canceling out vibrations. This design ensures smooth and shudder-free operation, which enhances your driving experience. Additionally, the lower mounting position of the boxer engine contributes to a reduced center of gravity, improving vehicle stability and handling. This feature makes it a popular choice for sports cars like the Subaru WRX and Porsche 911, where balance and precision are critical.

In contrast, the inline engine relies on a simpler design, but it often generates more vibrations. Inline engines, especially those with fewer cylinders, may require additional counterbalancing measures to achieve smoothness. However, inline-6 engines are naturally balanced due to their firing order and cylinder arrangement, offering a refined driving experience. This balance makes them a preferred option for luxury vehicles like the BMW 3 Series.

Firing Order and Vibration

The firing order plays a significant role in determining the vibration characteristics of an engine. In a boxer engine, the opposing pistons fire alternately, which minimizes secondary vibrations. This firing sequence ensures a smoother operation, even at higher RPMs. The symmetrical layout also distributes forces evenly across the engine, reducing wear and tear over time.

Inline engines, on the other hand, have a more straightforward firing order. While this simplicity aids in manufacturing and maintenance, it can lead to uneven vibration patterns, especially in smaller configurations like inline-3 or inline-4 engines. Manufacturers often use balance shafts or engine mounts to counteract these vibrations, ensuring a comfortable ride.

Torque Delivery and Power Output

The boxer engine delivers torque in a linear and predictable manner. Its low center of gravity allows for better weight distribution, which translates to improved traction and cornering performance. This characteristic makes the boxer engine ideal for performance-oriented vehicles. However, the flat design can limit the number of cylinders, potentially capping power output compared to larger inline engines.

Inline engines, particularly inline-4 and inline-6 configurations, are known for their versatility and power delivery. Inline-4 engines strike a balance between efficiency and performance, making them suitable for everyday vehicles. Inline-6 engines, with their longer crankshaft, can produce higher power outputs, making them a favorite for high-performance and luxury cars.

Practical Implications of Boxer Engine vs Inline Engine

Center of Gravity and Vehicle Dynamics

The center of gravity plays a critical role in determining how a vehicle handles on the road. Boxer engines excel in this area due to their horizontally opposed cylinder layout. This design creates a shorter and flatter engine profile, which allows it to sit lower in the engine bay. As a result, the vehicle achieves a lower overall center of gravity. This improvement enhances responsiveness during cornering and evasive maneuvers, making it ideal for dynamic driving situations. For example, the boxer 4 and boxer 6 engines are known for their ability to improve weight distribution, especially when mounted further back in the engine bay.

In contrast, inline engines, with their taller and narrower design, tend to raise the vehicle’s center of gravity. While this may not significantly impact everyday driving, it can affect stability during high-speed cornering or sudden directional changes. However, inline engines remain a popular choice for vehicles prioritizing simplicity and space efficiency over performance dynamics.

Maintenance and Serviceability

When it comes to maintenance, the boxer engine presents unique challenges. Its compact and low-profile design, while beneficial for stability, makes accessing components like spark plugs and valves more difficult. This complexity often translates to higher service costs and longer repair times. For instance, the intricate layout of a boxer engine requires specialized tools and expertise, which can increase maintenance expenses.

On the other hand, inline engines are easier to service due to their straightforward design. The vertical arrangement of cylinders provides better accessibility for routine tasks such as oil changes, spark plug replacements, and valve adjustments. Additionally, the simpler construction of inline engines reduces the number of components, leading to lower production costs and easier repairs. This makes them a practical choice for drivers seeking cost-effective maintenance.

Space Efficiency and Vehicle Design

The layout of an engine significantly influences vehicle design and space utilization. Boxer engines, with their flat and wide structure, allow for a lower placement in the engine bay. This not only improves the vehicle’s center of gravity but also enhances safety by reducing the risk of engine intrusion into the passenger compartment during frontal collisions. However, the horizontal arrangement of cylinders can limit space for other components, potentially complicating vehicle design.

Inline engines, by contrast, are more space-efficient due to their narrow and tall configuration. This design leaves more room in the engine bay for additional components or larger passenger compartments. As a result, inline engines are commonly found in vehicles where maximizing interior space is a priority, such as sedans and compact cars.

Pros and Cons of Boxer Engine vs Inline Engine

Advantages of Boxer Engines

The boxer engine offers several advantages that make it a standout choice for performance-oriented vehicles. Its horizontally opposed cylinder layout provides inherent balance, as the pistons move in opposite directions, canceling out vibrations. This design ensures a smoother and more refined driving experience, especially at higher speeds. Additionally, the flat configuration lowers the engine’s center of gravity, which improves vehicle stability, cornering precision, and braking performance. These characteristics make the boxer engine a preferred option for sports cars like the Subaru WRX and Porsche 911.

Another benefit lies in its safety potential. The engine’s low placement in the vehicle reduces the risk of intrusion into the passenger compartment during frontal collisions. This feature enhances crash safety, particularly in high-performance vehicles. Furthermore, the symmetrical layout of the pistons contributes to even weight distribution, which enhances handling and agility on the road.

Disadvantages of Boxer Engines

Despite its advantages, the boxer engine comes with notable drawbacks. Its wide design complicates maintenance tasks, as accessing components like spark plugs and valves often requires specialized tools and expertise. This complexity increases service costs and repair times. The engine’s dual-cylinder head configuration also adds to its production cost, making it more expensive than simpler designs like the inline engine.

The wide layout can also obstruct airflow, potentially leading to overheating issues in certain applications. Additionally, the boxer engine’s design affects suspension geometry and steering angle decisions, which can limit its adaptability in some vehicle types. These factors make it less practical for budget-conscious drivers or vehicles prioritizing simplicity and cost-efficiency.

Advantages of Inline Engines

The inline engine stands out for its simplicity and compactness. Its single-cylinder head design makes it easier to access components, reducing maintenance costs and repair times. This straightforward layout also lowers production costs, making inline engines a cost-effective choice for manufacturers and consumers alike. Vehicles like the BMW 3 Series benefit from this design, offering a balance of performance and affordability.

The compact and narrow structure of the inline engine allows for better integration with vehicle components, maximizing space efficiency. This feature is particularly advantageous in smaller vehicles, where interior space is a priority. Additionally, the inline engine’s simplicity results in fewer moving parts, which enhances reliability and reduces the likelihood of mechanical failures.

Disadvantages of Inline Engines

While inline engines are known for their simplicity and compact design, they come with several drawbacks that you should consider. One of the primary disadvantages is their higher center of gravity. The vertical arrangement of cylinders makes the engine taller, which can negatively impact vehicle stability during sharp turns or high-speed maneuvers. This characteristic makes inline engines less suitable for sports cars or vehicles that prioritize dynamic handling.

Another limitation lies in their vibration levels. Inline engines, especially those with fewer cylinders like inline-3 or inline-4 configurations, often produce more vibrations compared to other engine layouts. Manufacturers typically add balance shafts or engine mounts to counteract these vibrations, but these solutions can increase complexity and cost. For instance, while the BMW 3 Series uses advanced engineering to minimize vibrations in its inline-4 engines, smaller or budget-friendly models may not offer the same level of refinement.

Space efficiency, though generally a strength, can also become a drawback in certain applications. The inline engine’s length increases with the number of cylinders, which can limit its use in compact vehicles. Inline-6 engines, for example, require a longer engine bay, making them impractical for smaller cars. This limitation restricts their versatility compared to other designs like the boxer engine.

Finally, inline engines may not deliver the same level of torque and balance as a boxer engine. The symmetrical layout of a boxer engine provides better weight distribution and smoother torque delivery, which enhances performance in sports cars like the Subaru WRX and Porsche 911. Inline engines, while efficient, often prioritize cost and simplicity over high-performance characteristics.

Tip: If you prioritize stability, smooth torque delivery, and dynamic handling, consider exploring vehicles with boxer engines instead of inline configurations.

Boxer and inline engines each offer distinct advantages, making them suitable for different driving needs. The boxer engine excels in balance and stability due to its low center of gravity, which enhances cornering and braking. This makes it a top choice for sports cars like the Subaru WRX and Porsche 911. However, its complex design increases maintenance costs and production expenses. On the other hand, the inline engine stands out for its simplicity, compact size, and cost-effectiveness. Its design allows for easier maintenance and is widely used in vehicles like the BMW 3 Series. Choosing the right engine depends on your priorities. If you value performance and handling, the boxer engine is ideal. For cost-efficiency and practicality, the inline engine is a better fit.

Note: The growing popularity of electric engines highlights how consumer priorities, such as environmental impact and maintenance costs, influence engine choices. This trend underscores the importance of aligning your preferences with the engine type that best suits your lifestyle.
