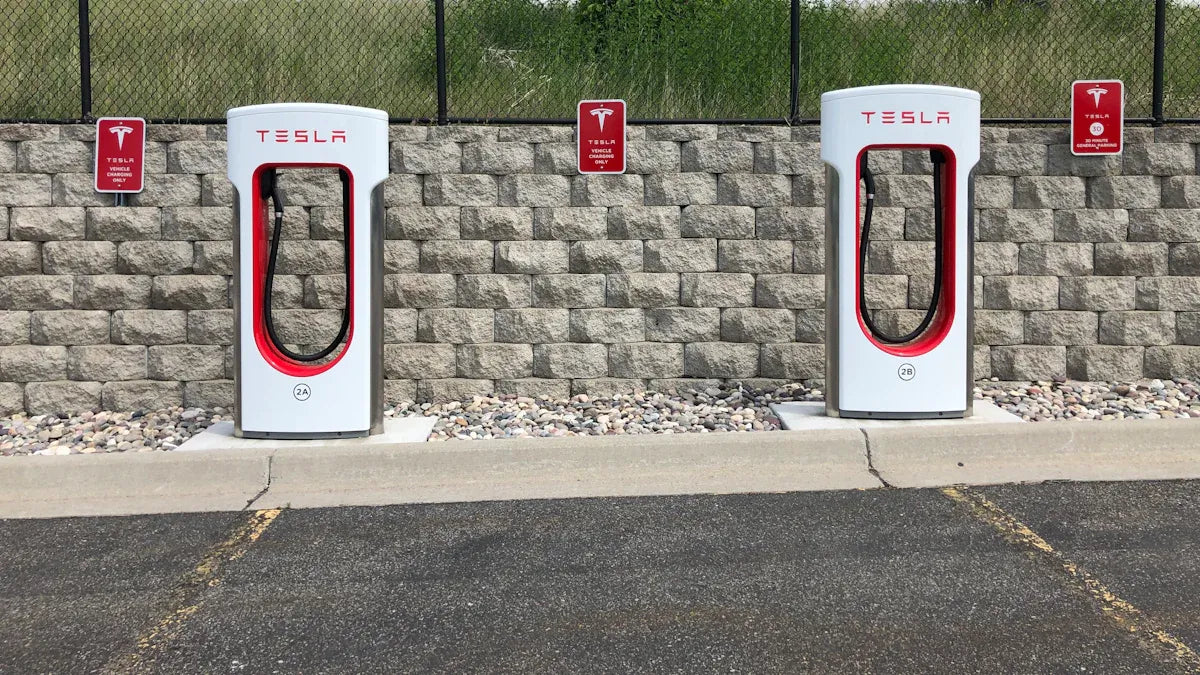

AC vs DC Charging for Electric Cars Pros and Cons

Electric vehicles (EVs) rely on two types of charging: AC and DC, each with distinct benefits and trade-offs. AC charging is slower but highly accessible and affordable, making it the go-to option for daily charging needs. Globally, over 600,000 public AC chargers were installed in 2022, with countries like China and the Netherlands leading the way. This widespread availability ensures convenience for EV owners. Additionally, AC charging at home costs around sixteen cents per kilowatt-hour in the U.S., offering significant savings compared to DC fast charging.

On the other hand, DC charging provides rapid energy replenishment, ideal for long trips or when time is limited. While it costs more and is less prevalent, its speed makes it indispensable for quick top-ups. Understanding how electric car charging works and the differences between AC and DC options allows you to choose the best fit for your driving needs.

Key Takeaways

• AC charging is slower but cheaper, great for daily use at home.

• DC charging is faster, ideal for long trips or when in a hurry.

• Knowing how AC and DC charging differ helps you pick the right one.

• Level 2 AC chargers are a good mix of speed and cost, adding up to 60 miles overnight.

• Think about your driving, budget, and charging options before choosing AC or DC charging.

How Electric Car Charging Works

The Role of AC and DC Currents in EV Charging

Electric vehicles rely on two types of electricity: AC and DC. AC power, or alternating current, flows in both directions and is the standard for most power grids worldwide. In contrast, DC power, or direct current, flows in a single direction and is essential for EV batteries, which can only store DC power.

When you charge your EV, the type of current plays a critical role. AC charging requires the vehicle’s onboard charger to convert AC power into DC power before storing it in the battery. This process limits the charging speed due to the onboard charger’s capacity. On the other hand, DC charging stations handle the conversion from AC to DC power externally. This eliminates the onboard limitations, enabling much faster charging speeds.

Why AC Charging is Common for Home Use

AC charging is the most practical option for home installations. It uses the same AC power supply that powers your household appliances, making it cost-effective and easy to set up. Level 1 and Level 2 chargers, both of which use AC power, are the most common home charging solutions. Level 1 chargers plug into standard outlets but charge slowly, taking up to 6 hours for a partial charge. Level 2 chargers, which require a dedicated 240-volt outlet, are faster and can fully charge most EVs overnight.

According to the J.D. Power 2021 EV Home Charging Study, many EV owners are unaware of the benefits of upgrading to Level 2 charging. While Level 1 charging may suffice for occasional use, it is inadequate for daily driving or long trips. Level 2 chargers offer a more reliable solution, providing up to 60 miles of range overnight.

How DC Charging Enables Fast Charging

DC charging is designed for speed. Unlike AC charging, which relies on the vehicle’s onboard charger, DC charging stations convert AC power to DC power before delivering it to your EV. This bypasses the onboard charger and allows for much higher power output, ranging from 50 kW to 350 kW. As a result, DC charging can replenish your battery in as little as 15 minutes, making it ideal for long trips or quick top-ups.

A typical DC fast charger delivers around 300 kW, significantly reducing charging time compared to AC charging. For example, adding 100 miles of range can take just 7 to 16 minutes, depending on the charger and vehicle. This efficiency makes DC charging a game-changer for EV owners who need to minimize downtime during travel.

AC Charging vs DC Charging: Key Differences

Speed of Charging

The charging speed is one of the most significant differences between AC charging and DC charging. AC charging relies on your electric vehicle’s onboard charger to convert AC power into DC power, which limits its speed. Depending on the power level, AC charging typically provides 3.5 to 11 kW, translating to 1.75 to 5.5 miles of range per hour. This makes it ideal for overnight charging or situations where time is not a constraint.

In contrast, DC charging bypasses the onboard charger by delivering DC power directly to the battery. This allows for much higher power outputs, ranging from 60 kW to 240 kW or more. With DC charging, you can add 30 to 120 miles of range in just 15 to 30 minutes, making it the preferred option for long trips or quick top-ups. The chart below illustrates the difference in charging speed between AC and DC charging:

Cost of Installation and Usage

The cost of installing and using AC charging is significantly lower than DC charging. At-home AC charging setups, such as Level 1 or Level 2 chargers, start at less than $1,000. However, costs can exceed $3,000 if you need to upgrade your electrical panel. Public AC charging is also relatively affordable, with Level 2 charging costing $8 to $10 for a full charge. The cost per kilowatt-hour (kWh) typically ranges from $0.20 to $0.25.

DC charging, on the other hand, involves higher installation and usage costs. Installing a DC fast charger can range from $5,000 to $50,000, depending on the power output and infrastructure requirements. Public DC charging is also more expensive, costing $16 to $24 for a full charge, with rates between $0.40 and $0.60 per kWh. While DC charging offers unmatched speed, its higher cost makes it less practical for daily use.

Availability of Charging Stations

AC charging stations are more widely available than DC charging stations. The U.S. has nearly 50,000 EV charging stations, with 93% of them publicly accessible. Most of these stations support AC charging, making it compatible with almost all electric vehicles. This widespread availability ensures that you can easily find an AC charging station, whether at home, work, or public locations.

DC charging stations, while growing in number, are less common and require specific infrastructure. Approximately 22,600 DC fast chargers are available in the U.S., with 99% of them located in public areas. Highways account for 25% of these DC fast chargers, making them convenient for long-distance travel. However, not all electric vehicles support DC charging, so you must verify compatibility before relying on this option.

Safety Considerations

When charging electric vehicles, safety is a critical factor to consider. Both AC and DC charging methods come with unique safety challenges. AC charging, commonly used at home, operates under normal household conditions. However, it can expose you to high-voltage risks if the equipment is faulty or improperly installed. DC charging, while faster, involves higher power levels, increasing the potential for overheating or battery damage if not managed correctly.

A comparative analysis highlights the safety hazards associated with each method:

Additionally, public charging stations often encounter operational issues. For instance, 1 in 5 public charging sessions face problems, with DC fast chargers reporting a 34% problem rate. These issues often stem from payment system failures, hardware malfunctions, or network reliability concerns. Tesla Superchargers, by comparison, have a lower problem rate of 4%, showcasing the importance of robust infrastructure.

To ensure safety, always inspect charging equipment for damage and follow the manufacturer’s guidelines. Using certified chargers and maintaining proper ventilation during charging can further reduce risks.

Charging Levels Explained (Level 1, Level 2, and DC Fast Charging)

Understanding the three main charging levels helps you choose the best option for your needs. Level 1 charging uses a standard 120V outlet, making it the slowest but most accessible method. It provides 2-5 miles of range per hour, suitable for overnight or emergency charging. Level 2 charging, requiring a 240V outlet, offers faster speeds, delivering 10-20 miles of range per hour. This makes it ideal for daily use at home or public stations.

DC fast charging, the quickest option, uses a 480V AC input to deliver 60-80 miles of range in just 20 minutes. This method is perfect for long-distance travel or when time is limited. The table below summarizes these charging levels:

Each level serves a specific purpose. Level 1 is best for occasional use, Level 2 suits regular charging needs, and DC fast charging excels in situations requiring speed. By understanding these options, you can optimize your charging experience based on your driving habits and infrastructure availability.

Pros and Cons of AC Charging

Benefits of AC Charging for Electric Vehicles

AC charging offers several advantages, making it a popular choice for electric vehicle owners. One of the most significant benefits is its affordability. Installing an AC charger at home, especially a Level 1 or Level 2 charger, is cost-effective compared to DC fast chargers. This makes it an accessible option for most households. Additionally, AC charging uses the standard power supply found in homes, eliminating the need for extensive infrastructure upgrades.

Convenience is another key advantage. With AC charging, you can charge your electric vehicle overnight, ensuring it is ready for use the next day. This aligns well with typical driving habits, as most people drive less than 40 miles daily. Level 2 chargers, in particular, provide a good balance between speed and cost, delivering up to 60 miles of range overnight.

User satisfaction data further highlights the benefits of AC charging. According to a study, Level 2 chargers, both portable and permanently mounted, scored significantly higher in satisfaction compared to Level 1 chargers. The table below illustrates this:

This data underscores the reliability and user-friendliness of AC charging solutions, particularly Level 2 chargers.

Limitations of AC Charging

Despite its advantages, AC charging has some limitations. The most notable drawback is its slower charging speed. Level 1 chargers, which use a standard 120V outlet, can take up to 24 hours to fully charge an electric vehicle. Even Level 2 chargers, while faster, require several hours to deliver a full charge. This makes AC charging less suitable for situations where you need a quick energy boost.

Another limitation is the dependency on the onboard charger of your electric vehicle. The onboard charger determines the maximum charging speed, which can vary significantly between models. For instance, some vehicles may only support up to 7.2 kW, even if the Level 2 charger can deliver more power.

Lastly, AC charging may not be ideal for long-distance travel. Public AC charging stations are widely available but may not provide the speed needed for quick top-ups during road trips. In such cases, DC fast charging becomes a more practical option.

Pros and Cons of DC Charging

Advantages of DC Charging for EV Owners

DC charging offers unparalleled speed, making it a game-changer for electric vehicle owners. Unlike AC charging, which relies on the vehicle’s onboard charger, DC charging delivers direct current directly to the battery. This bypasses the onboard charger, enabling rapid charging at much higher power levels. For instance, fast charging can replenish up to 80% of your battery in approximately 30 minutes, a significant advantage during long trips or when time is limited.

The efficiency of DC charging is evident when comparing its performance to other methods. While Level 1 charging adds only 3-5 miles of range per hour and Level 2 provides 25-30 miles, DC fast charging can deliver up to 80% of your battery’s capacity in just half an hour. The table below highlights these differences:

This rapid charging capability ensures minimal downtime, allowing you to focus on your journey rather than waiting at charging stations. Additionally, DC charging is ideal for high-mileage drivers or those who frequently travel long distances. Its growing availability along highways further enhances its appeal, providing a reliable solution for extended road trips.

Drawbacks of DC Charging

Despite its advantages, DC charging has some notable drawbacks. The most significant is its cost. Installing a DC fast charger can range from $5,000 to $50,000, making it a less feasible option for home use. Public DC charging stations also come with higher usage fees, often costing $0.40 to $0.60 per kilowatt-hour. This makes it a more expensive choice compared to AC charging, which remains the more economical option for daily use.

Another limitation is the infrastructure required for DC charging. These stations demand specialized equipment and a robust power supply, which limits their availability. While their numbers are increasing, they are still less common than AC charging stations. This can pose challenges if you rely heavily on rapid charging but lack access to nearby facilities.

Safety concerns also arise with DC charging. The high power levels involved increase the risk of overheating or battery degradation if not managed properly. Regular maintenance of charging equipment and adherence to safety guidelines are essential to mitigate these risks.

Choosing the Right EV Charging Option

When to Opt for AC Charging

AC charging is the most practical choice for daily use, especially if you have access to a home charging setup. It works well for overnight charging, allowing you to start each day with a full battery. If your daily commute or driving habits fall within the typical range of 30 to 40 miles, AC charging provides a cost-effective and convenient solution. Level 2 chargers, in particular, offer a good balance between speed and affordability, making them ideal for residential use.

Public AC charging stations are also widely available, making it easy to top up your battery during errands or while at work. If you prioritize affordability and have the time to charge your vehicle over several hours, AC charging is the better option. It aligns with the needs of most EV owners who drive shorter distances and prefer to charge at home or in familiar locations.

When DC Charging is the Better Choice

DC charging becomes essential when time is a critical factor. If you frequently travel long distances or need to recharge quickly during a road trip, DC charging offers unmatched speed. It can replenish up to 80% of your battery in just 20 to 30 minutes, minimizing downtime and keeping you on the move. High-mileage drivers or those with unpredictable schedules benefit the most from this rapid charging option.

Highways and major travel routes often feature DC charging stations, making them convenient for long-distance travel. However, you should verify your vehicle’s compatibility with DC charging before relying on it. While the cost is higher, the time saved during charging sessions often justifies the expense for those who value efficiency.

Factors to Consider: Driving Habits, Budget, and Infrastructure

Choosing between AC and DC charging depends on several factors. Your driving habits play a significant role. If you primarily drive short distances and have access to home charging, AC charging is the logical choice. For frequent travelers or those with high daily mileage, DC charging offers the speed needed to stay on schedule.

Budget is another critical consideration. AC charging is more affordable for both installation and usage, making it suitable for cost-conscious EV owners. DC charging, while faster, involves higher costs for both equipment and public charging sessions. Assessing your financial priorities will help you determine the best fit.

Finally, the availability of charging infrastructure in your area influences your decision. AC charging stations are more common and easier to access, while DC charging stations are often limited to highways and urban centers. Decision-making frameworks like MCDM techniques and DEMATEL methods can help you evaluate these factors systematically. These models assess economic, social, and technological aspects, providing a structured approach to choosing the right charging option.

By considering these factors, you can make an informed decision that aligns with your lifestyle and charging needs.

AC charging provides a cost-effective solution for regular, overnight electric vehicle charging, making it ideal for daily use. In contrast, level 3 charging, or DC fast charging, excels in speed, offering quick top-ups during long trips. In 2023, commercial charging captured over 45% of the EV Charging Connector Market, driven by public infrastructure expansion. DC charging accounted for 72% of global revenue in 2022, showcasing its dominance in fast charging. By evaluating your driving habits, budget, and access to level 3 charging stations, you can select the best option to meet your needs.
